COAL

Introduction:

Coal is a fossil fuel that forms from the remains of ancient plants and trees that lived millions of years ago. It is primarily composed of carbon along with various other elements, such as hydrogen, sulfur, oxygen, and nitrogen. The process of coal formation begins when plant matter accumulates in swampy areas, and over time, the organic material is subjected to heat and pressure, eventually transforming into coal.

Origin theories of coal:

There are two main theories regarding the origin of coal: the In situ Theory and the Drift Theory. These theories propose different mechanisms for the formation of coal.

1. In situ Theory: The in situ theory suggests that coal formed in place, meaning it was formed from plant material that grew and accumulated in swamps or marshy environments where it eventually transformed into coal. According to this theory, the plants grew and died in the same location, with their remains accumulating and undergoing a process of coalification. Over time, layers of sediment buried the plant material, subjecting it to heat and pressure, ultimately forming coal.

2. Drift Theory: The drift theory proposes that coal originated from plant material that was transported and deposited by water or wind. This theory suggests that the plant material accumulated in different areas, such as river deltas, lake beds, or along the coastlines, and was later buried by sediment. The transported plant material then underwent coalification due to the heat and pressure associated with burial.
Both theories have supporting evidence and observations. The in situ theory is supported by the presence of well-preserved plant fossils within coal seams, suggesting that coal formed from vegetation that grew in situ. The drift theory is supported by the occurrence of coal deposits in locations far away from any known swamp or marsh environment, indicating that the plant material must have been transported to those areas.
It's important to note that the formation of coal is a complex process influenced by various factors, including the type of vegetation, environmental conditions, burial processes, and geological history. The actual formation of coal likely involves a combination of both in situ and drift mechanisms, with the relative importance of each varying depending on the specific coal deposit.

Composition:

Coal is composed mainly of carbon, along with varying amounts of other elements such as hydrogen, sulfur, oxygen, and nitrogen. The composition of coal can vary depending on its type or rank, as well as its geological origin. Here is a general composition of coal:
1. Carbon (C): Carbon is the primary element in coal and constitutes a significant portion of its composition. The carbon content can range from around 45% to 95% depending on the type of coal. Higher-rank coals such as anthracite have a higher carbon content.
2. Hydrogen (H): Hydrogen is another important element in coal composition, typically ranging from 2% to 6% in bituminous coal. Hydrogen content is generally higher in lower-rank coals.
3. Sulfur (S): Sulfur content in coal can vary widely, ranging from traces to several percent. High sulfur content in coal can lead to increased sulfur dioxide emissions during combustion, contributing to air pollution and acid rain. Desulfurization technologies are employed to reduce sulfur emissions from coal combustion.
4. Oxygen (O): Coal contains oxygen, usually in the form of oxygen atoms bound to carbon and hydrogen atoms. Oxygen content can range from 5% to 40% depending on the coal type and its rank.
5. Nitrogen (N): Nitrogen content in coal is typically in the range of 0.5% to 2%. Nitrogen emissions during coal combustion contribute to air pollution and the formation of nitrogen oxides (NOx).
6. Other elements: Coal may also contain small amounts of trace elements such as mercury, arsenic, lead, and others, which can have environmental and health implications.

Types of coal:

Fig.: Classification of coal

There are four main types or ranks of coal, which are classified based on their carbon content, energy potential, and properties. These types of coal, listed in order of increasing carbon content and energy value, are:
1. Lignite: Also known as brown coal, lignite is the lowest rank of coal. It has a carbon content of around 25-35% and a high moisture content of up to 50%. Lignite is soft and crumbly, with a low energy content. It is primarily used for electricity generation in power plants.
2. Sub-bituminous coal: This type of coal has a carbon content ranging from 35% to 45%. It has a lower moisture content compared to lignite, typically around 20-30%. Sub-bituminous coal has a higher energy content than lignite and is commonly used for electricity generation and industrial applications.
3. Bituminous coal: Bituminous coal is the most widely used type of coal. It has a carbon content ranging from 45% to 86% and a moisture content of around 8-15%. Bituminous coal is relatively hard and dense, with a high energy content. It is used for electricity generation, steel production, cement manufacturing, and other industrial processes.
4. Anthracite: Anthracite coal has the highest carbon content among coal types, ranging from 86% to 98%. It has a low moisture content of about 2-6%. Anthracite is hard, glossy, and has a high energy content. It burns cleanly and efficiently, making it valuable for residential heating, as well as for industrial purposes such as smelting and metal production.
The energy content and quality of coal increase as you move from lignite to sub-bituminous, bituminous, and finally anthracite. Each type of coal has different properties and applications, with higher-rank coals (anthracite and bituminous) generally having greater energy value and lower-rank coals (sub-bituminous and lignite) having lower energy value.

Others types of coal:

i. Microscopic classification
ii. Macroscopic classification

i. Microscopic classification:
 Microscopic classification of coal involves examining coal samples under a microscope to assess their composition, structure, and petrographic characteristics. This classification provides detailed information about the coal's organic components, mineral matter, and degree of coalification. It helps in understanding the coal's quality, rank, and potential uses. Here are the main microscopic classifications of coal:
a. Vitrinite: Vitrinite is the most abundant maceral in coal. It is derived from the woody tissue of plants and appears as shiny, reflective particles under a microscope. Vitrinite reflects light and has high carbon content, contributing to the energy potential of coal.
b. Liptinite: Liptinite macerals are derived from spores, resins, and waxy materials. They appear as translucent to opaque particles under a microscope. Liptinite macerals include exinite, sporinite, and resinite. They have relatively low carbon content and contribute to the volatile matter in coal.
c. Inertinite: Inertinite macerals are derived from plant material that has been highly altered by heat and pressure. They appear as dull, opaque particles under a microscope. Inertinite macerals include fusinite, semifusinite, and micrinite. They have relatively high carbon content and are often associated with higher-rank coals.2. Microlithotypes: On the basis of no. of macerals , coal can be didived into three groups :

                        a. Monomaceral Coal
b. Bimaceral Coal
c. Trimaceral Coal

a. Monomaceral Coal: Monomaceral coal refers to coal samples that predominantly contain a single maceral type. For example, if a coal sample is composed almost entirely of vitrinite macerals with only trace amounts of inertinite and liptinite, it would be classified as monomaceral coal. Monomaceral coal samples are relatively rare, as most coals contain a mixture of maceral types.

b. Bimaceral Coal: Bimaceral coal describes coal samples that predominantly consist of two distinct maceral types. For instance, a coal sample that contains significant amounts of both vitrinite and inertinite macerals, with only minor amounts of liptinite, would be classified as bimaceral coal. Bimaceral coals are more common than monomaceral coals but still relatively less prevalent compared to coals with a broader maceral composition.

c. Trimaceral Coal: Trimaceral coal indicates coal samples that are composed of three main maceral types in significant proportions. For example, a coal sample with substantial amounts of vitrinite, inertinite, and liptinite macerals would be considered trimaceral coal. Trimaceral coals are more representative of typical coal compositions and are often found in various coal deposits worldwide.

ii. Macroscopic classification:
The macroscopic classification of coal involves categorizing coal based on its visible physical characteristics and properties. Two main macroscopic classifications of coal are -

                                 a. humic coal
 b. sapropelic coal

a. Humic coal: Humic coal, also known as huminite, is a type of coal that is derived from the accumulation and transformation of terrestrial plant material. It is the most common type of coal found worldwide and gives a banded look.

Lithotypes constituents of humic coal:
Vitrain, clarain, durain, and fusain are lithotypes within humic coal that represent different components and characteristics of the coal. These lithotypes can be identified based on their visual appearance and petrographic composition. Here is a description of each lithotype:

1. Vitrain: Vitrain is a lithotype of humic coal that primarily consists of the maceral known as vitrinite. Vitrinite is a shiny, reflective maceral that represents the remnants of woody tissues from plants. Vitrain has a glassy or vitreous appearance and is often characterized by its high reflectance under a microscope. It has a high carbon content and is associated with high-quality, high-rank coals.

2. Clarain: Clarain is another lithotype of humic coal that predominantly contains vitrinite macerals. However, compared to vitrain, clarain has a lower reflectance and may show more variability in reflectance values. Clarain can exhibit a range of textures and reflectance levels, indicating variations in the degree of coalification.

3. Durain: Durain is a lithotype of humic coal that is characterized by the presence of relatively abundant inertinite macerals. Inertinite represents organic material that has undergone significant alteration, such as oxidation or thermal decomposition. Durain often appears as dull, opaque particles under a microscope, indicating the presence of inertinite macerals. The inertinite content in durain contributes to its lower reflectance compared to vitrain and clarain.

4. Fusain: Fusain is a lithotype of humic coal that consists of charcoal-like material derived from the incomplete combustion of plant material. It is characterized by its porous structure and blackened appearance. Fusain often appears as fragmented or partially burned plant remains within the coal matrix. It has a low reflectance and is associated with lower-rank coals.

These lithotypes represent different components and characteristics of humic coal, reflecting variations in the type and degree of organic material, coalification, and thermal history. Their presence and relative abundance within a coal sample can provide insights into the coal's petrographic composition, rank, and potential properties for various applications.

b. sapropelic coal : Sapropelic coal, specifically non-banded sapropelic coal, refers to a type of coal that originates from the accumulation and transformation of organic-rich aquatic plant and animal matter in stagnant water. It is different from humic coal, which is derived from terrestrial plant material.

Non-banded sapropelic coal is characterized by its homogeneous appearance without distinct banding or layering. It lacks the visible plant structures found in humic coal. Instead, it primarily consists of organic remains from algae, spores, microorganisms, and other aquatic organisms.

Types of sapropelic coal: It has two types of coal-

1. Boghead coal
2. Cannel coal

1. Boghead Coal: Boghead coal, also known as torbanite, is a type of sapropelic coal that was historically mined in Scotland. It is named after the Boghead area in Scotland, where it was first discovered. Boghead coal is notable for its exceptionally high oil content and was valued for its ability to produce oil when heated. It has a waxy appearance and can be easily cut or carved.
Boghead coal formed in freshwater environments, such as ancient lakes or lagoons, during the Carboniferous and Permian periods. It primarily consists of a mix of algal remains, spores, and other organic matter. The high oil content in Boghead coal is attributed to the abundance of algal material, which had a high lipid content. This unique composition and high oil yield distinguish Boghead coal from other types of coal.

2. Cannel Coal: Cannel coal is another type of sapropelic coal that is characterized by its distinct physical properties. It has a relatively homogeneous and fine-grained texture, often resembling shale or compacted clay. Cannel coal has a high carbon content and a relatively low ash content, making it a high-quality coal for fuel purposes.

Cannel coal originated in shallow marine or lacustrine environments, such as coastal swamps or deltaic regions, during the Carboniferous and Permian periods. It is primarily composed of the remains of algae, particularly freshwater or brackish water algae. Cannel coal typically has a high hydrogen content, which contributes to its superior combustion characteristics and relatively low smoke emission.

Both boghead coal and cannel coal have historical significance due to their use as a source of oil and gas during the 19th and early 20th centuries. However, their importance as fuel sources has diminished over time. Today, these coals are mainly of interest for their geological and historical value, as well as their unique properties for research and study purposes.

Coal formation:

Coal is formed through a process called coalification, which occurs over millions of years. The formation of coal involves the transformation of organic plant material into a carbon-rich substance under specific conditions. Here is a general overview of the formation of coal:
1. Accumulation of Plant Material: Coal formation begins with the accumulation of large quantities of organic plant material, such as ferns, trees, and other vegetation. This typically occurs in swampy or marshy environments where the plant material can accumulate and be protected from decay by oxygen.
2. Peat Formation: The plant material undergoes partial decomposition in the swampy environment due to bacterial action and limited oxygen. This partially decomposed plant matter is known as peat. Peat consists of about 90% water and 10% organic material.
3. Burial and Compaction: Over time, layers of sediment, such as mud and sand, accumulate on top of the peat. The weight of the overlying sediment exerts pressure on the peat, causing compaction. This process gradually squeezes out water and reduces the volume of the peat.
4. Heat and Pressure: As more layers of sediment accumulate, the buried peat is subjected to increasing heat and pressure from the overlying rocks and sediments. The heat and pressure cause physical and chemical changes in the peat, leading to the formation of coal.
5. Coalification: The heat and pressure during burial cause the chemical composition of the peat to change. Volatile components, such as water, methane, and carbon dioxide, are gradually expelled, leaving behind a carbon-rich solid material. This process of chemical and physical transformation is known as coalification.
6. Types of Coal: The degree of coalification and the resulting type of coal depend on factors such as temperature, pressure, and the duration of coalification. The stages of coalification or coal ranks include lignite, sub-bituminous coal, bituminous coal, and finally, anthracite. The carbon content and energy content increase as coal progresses from lignite to anthracite.

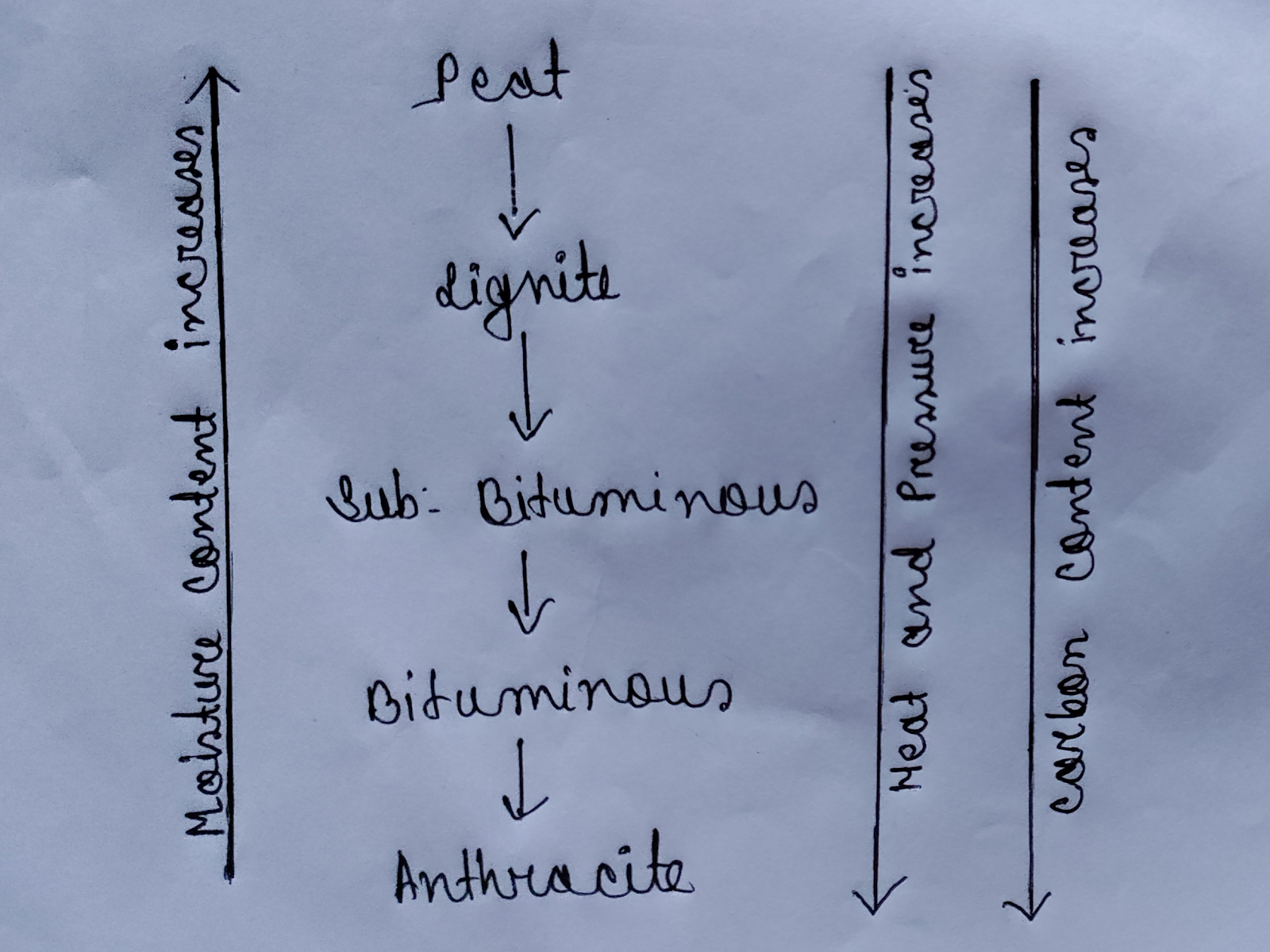

Fig.: Grade of coal

Conclusion :

coal is a valuable and versatile sedimentary rock that plays a significant role in global energy production and various industrial processes. It is primarily composed of organic material that accumulated and underwent coalification over millions of years in swampy environments. Coal is a major source of electricity generation and provides heat and energy for residential, commercial, and industrial applications.

The classification of coal is based on its physical properties, chemical composition, and petrographic characteristics. The main types of coal include lignite, sub-bituminous coal, bituminous coal, and anthracite, with each type having distinct properties and energy content. Additionally, sapropelic coal, such as boghead and cannel coal, represents a unique subset formed from organic-rich aquatic plant and animal matter.

Coal mining and utilization have significant environmental impacts, including greenhouse gas emissions, air pollution, and disruption of ecosystems. As society moves toward more sustainable and cleaner energy sources, there is an increasing focus on transitioning away from coal and investing in renewable energy technologies.

Nonetheless, coal remains an important resource in many parts of the world, providing reliable energy and supporting economic development. The efficient and responsible use of coal, coupled with ongoing research into cleaner coal technologies and carbon capture, can help mitigate its environmental impact and bridge the transition to a more sustainable energy future.
